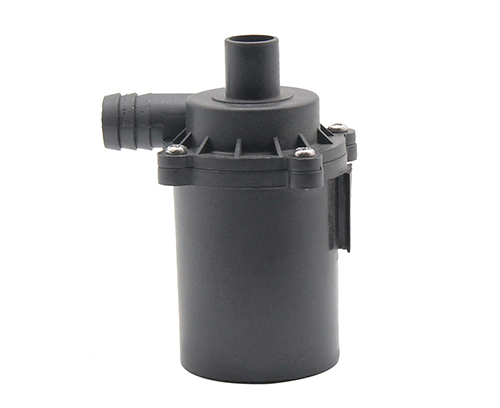

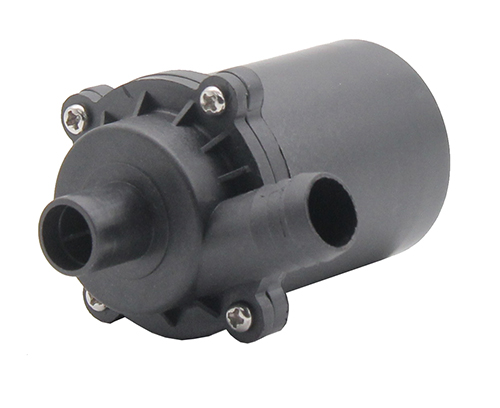

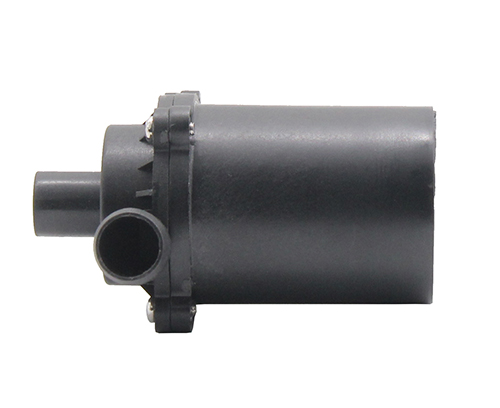

CP40-2410 DC brushless submersible
Brand | g-st, other | model | CP40-1240 | Material | Engineering plastics |
Drive method | electric | performance | No leakage/auto | use | Sewage pump , sewage pump, submersible pump; circulation pump, others |
Pump shaft position | Horizontal | flow | 0.44 ( m3/h ) | Lift | 7 ( m ) |
Voltage | 12V ( V ) | colour | black |
Material Engineering plastics Pump shaft position Horizontal impeller suction method Single suction
Water pump
36V DC
Extraordinary life , theoretical life is 10,000 hours
Permanent magnet rotor and stainless steel shaft
Maintenance free
Dive settings
Low power consumption
Head 7 M
Flow 500L/H;
Weight: 180g
Solar fountain;
Cooling pump

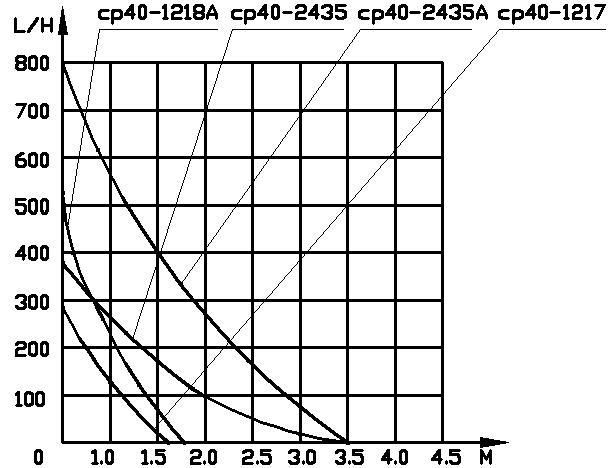

Parameter | |||||||||
Model | V (V) | I ( MA ) | H (cm) | Q (L/H) | Model | V (V) | I (mA) | H (cm) | Q (L/H) |
CP40-1217 | 12 | 300 | 170 | 264 | CP40-0918 | 9 | 500 | 180 | 350 |
CP40-1224 | 12 | 500 | 230 | 354 | CP40-2435 | twenty four | 410 | 350 | 380 |
CP40-1230 | 12 | 650 | 300 | 400 | CP40-2440 | twenty four | 630 | 450 | 500 |
CP40-1240 | 12 | 860 | 400 | 440 | CP40-2460 | twenty four | 830 | 600 | 540 |
CP40-1260 | 12 | 960 | 600 | 460 | CP40-3670 | 36 | 750 | 700 | 500 |
CP40-1270 | 12 | 1300 | 700 | 500 | CP40-3610 | 36 | 840 | 1000 | 540 |
note:
Maximum temperature: 60°C (140F); 100°C (180F) (customizable)
Power cord: can be customized
The lead wire length is 10cm
Q: Maximum water flow; H: Maximum lift;
