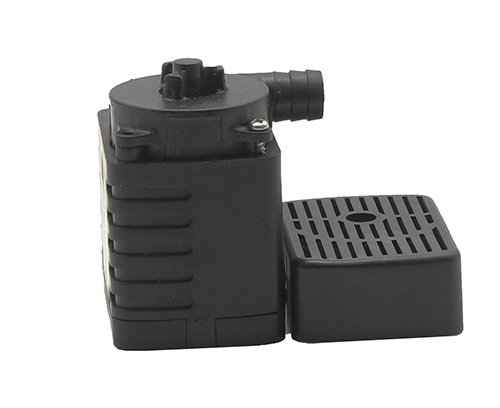

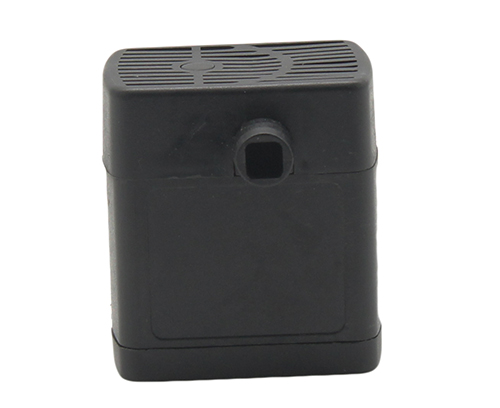

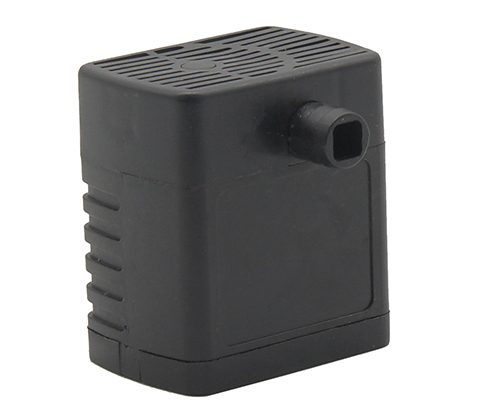

DC Brushless Water Pump CP36Series (New)
● 6V～24V DC
● Ultra-quiet design
● Long life, theoretical life>15000 hours
● Permanent magnet rotor and stainless steel shaft
● Maintenance-free
● Diving and non-diving design
● Low power consumption
● Maximum lift 2.7M
● Maximum flow 310L/H;
● Weight: 100g
application
● Solar fountain ;
● USB fountain
● Cooling fan, mattress
● Water cycle
● Water dispenser
Parameter | |||||||||
Model | V (V) | I（MAX） (mA) | Q（MAX） (L/H) | H（MAX） (cm) | Model | V （V） | I（MAX） （mA） | Q（MAX） (L/H) | H（MAX） (cm) |
CP36-0660 | 6 | 115 | 130 | 60 | CP36-2408 | 24 | 70 | 150 | 80 |
CP36-0770 | 7 | 130 | 140 | 70 | CP36-2410 | 24 | 80 | 165 | 100 |
CP36-0910 | 9 | 155 | 170 | 100 | CP36-2415 | 24 | 135 | 200 | 150 |
CP36-1215 | 12 | 190 | 200 | 150 | CP36-2420 | 24 | 200 | 240 | 200 |
CP36-1218 | 12 | 240 | 220 | 180 | CP36-2424 | 24 | 290 | 280 | 240 |
CP36-1222 | 12 | 300 | 240 | 220 | CP36-2427 | 24 | 340 | 310 | 270 |
note: l Maximum temperature: 60°C (140F); 100°C (180F) needs to be customized l Power cord: customized l More parameters can be customized according to customer requirements; l Built-in water shortage and power failure function according to customer requirements l There are many appearances, customers should pay attention to selection | |||||||||
The headquarters of Shenzhen Chenzhou Electric Co., Ltd. is located near Nantouguan, Shenzhen. It has a motor production base of 5,000 square meters in Guilin, Guangxi, and an electrical production base of 4,500 square meters in Longgang District, Shenzhen. The company uses strong electronic technology in Shenzhen. Relying on the industry, taking advantage of the easy communication between neighboring Hong Kong and Macao and foreign businessmen, it is mainly engaged in the development, production and sales of high-tech products such as brushless motors and solar water pumps for household appliances , micro high-pressure water pumps , and brushless DC water pumps .
After several years of development, a group of technical elites in the industry have gathered and developed a series of electrical and electronic products with high technical content and market development prospects. Such as industrial permanent magnet brushless motors and control systems; solar DC brushless water pumps; high-speed brushless motors and control systems for aircraft models; dual-frequency ultrasonic toothbrushes; ultrasonic household products; special micro-series water pumps. Welcome everyone interested in calling!
