Brushless DC Water Pump

category:CP40A
hit count:
Release date:2020/11/16
Online Inquiry

Detailed introduction

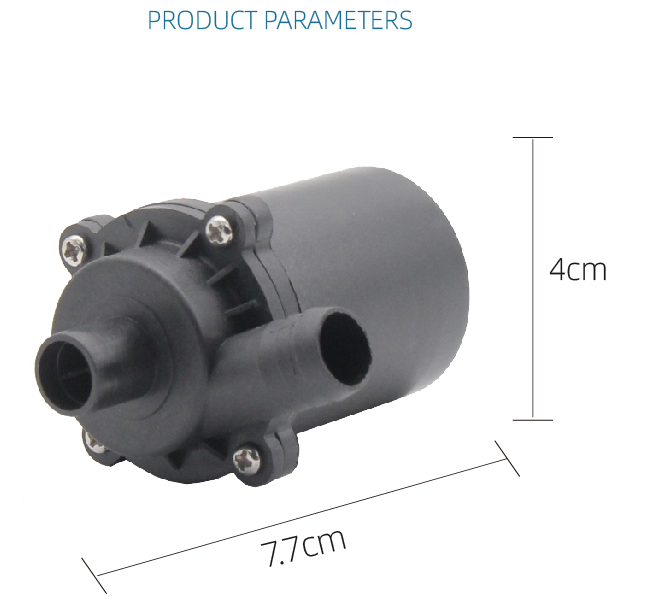

CP40-2410 DC brushless submersible

Brand	g-st, other	model	CP40-1240	Material	Engineering plastics
Drive method	electric	performance	No leakage/auto	use	Sewage pump , sewage pump, submersible pump; circulation pump, others
Pump shaft position	Horizontal	flow	0.44 ( m3/h )	Lift	7 ( m )
Voltage	12V ( V )	colour	black

Material Engineering plastics Pump shaft position Horizontal impeller suction method Single suction

Water pump

36V DC
Extraordinary life , theoretical life is 10,000 hours
Permanent magnet rotor and stainless steel shaft
Maintenance free
Dive settings
Low power consumption
Head 7 M
Flow 500L/H;
Weight: 180g

Solar fountain;

Cooling pump

Parameter
Model	V (V)	I ( MA )	H (cm)	Q (L/H)	Model	V (V)	I (mA)	H (cm)	Q (L/H)
CP40-1217	12	300	170	264	CP40-0918	9	500	180	350
CP40-1224	12	500	230	354	CP40-2435	twenty four	410	350	380
CP40-1230	12	650	300	400	CP40-2440	twenty four	630	450	500
CP40-1240	12	860	400	440	CP40-2460	twenty four	830	600	540
CP40-1260	12	960	600	460	CP40-3670	36	750	700	500
CP40-1270	12	1300	700	500	CP40-3610	36	840	1000	540

note:

Maximum temperature: 60°C (140F); 100°C (180F) (customizable)

Power cord: can be customized

The lead wire length is 10cm

Q: Maximum water flow; H: Maximum lift;

The headquarters of Shenzhen Chenzhou Electric Co., Ltd. is located near Nantouguan, Shenzhen. It has a motor production base of 5,000 square meters in Guilin, Guangxi, and an electrical production base of 4,500 square meters in Longgang District, Shenzhen. The company uses strong electronic technology in Shenzhen. Relying on the industry, taking advantage of the easy communication between neighboring Hong Kong and Macao and foreign businessmen, it is mainly engaged in the development, production and sales of high-tech products such as brushless motors and solar water pumps for household appliances , micro high-pressure water pumps , and brushless DC water pumps .

After several years of development, a group of technical elites in the industry have gathered to develop a series of electrical and electronic products with high technical content and market development prospects. Such as industrial permanent magnet brushless motors and control systems; solar DC brushless water pumps ; high-speed brushless motors and control systems for aircraft models; dual-frequency ultrasonic toothbrushes; ultrasonic household products; special micro-series water pumps. Interested parties are welcome to call!
