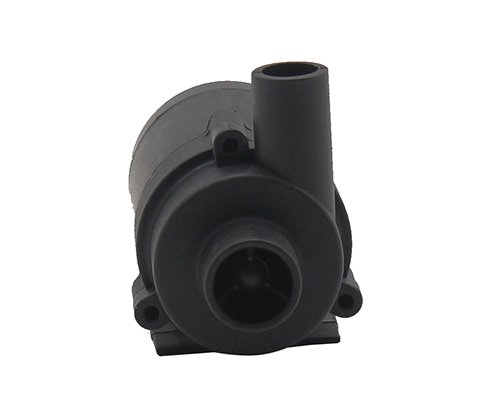

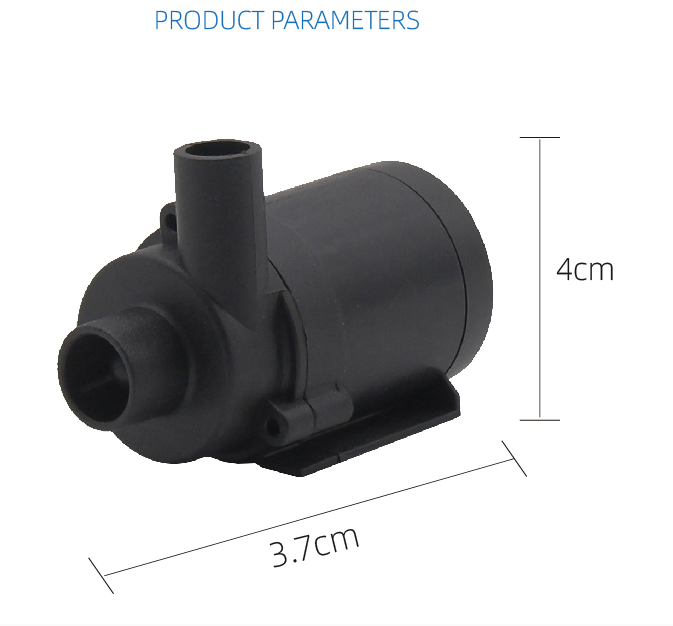

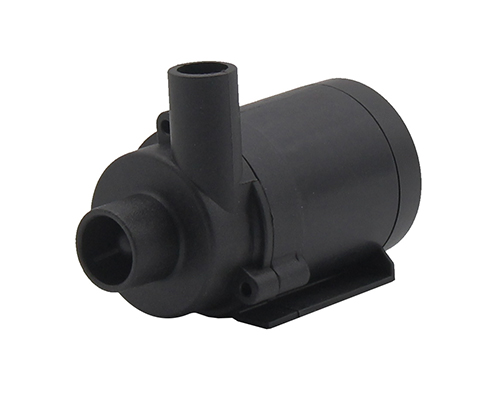

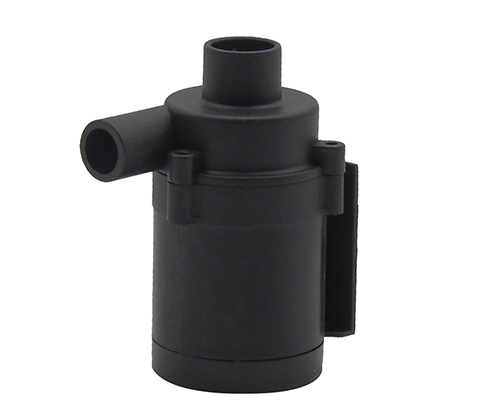

Brushless DC Water Pump CP32Series(New)

 g-east

● 3~24V

● Ultra-quiet design

● Long life, theoretical life>15000 hours

● Permanent magnet rotor and stainless steel shaft or ceramic shaft

● Maintenance-free

● Diving and non-diving design

● Low power consumption

● Maximum lift 2.0M

● The maximum flow is 300L/H;

● Weight: 70g

application

●  Solar fountain ;

● USB fountain

● Cooling fan, mattress

● Water cycle

● Water dispenser

•


• Parameter
  Model	V (V)	I（MAX） (mA)	Q（MAX） (L/H)	H（MAX） (cm)	Model	V （V）	I（MAX） （mA）	Q（MAX） (L/H)	H（MAX） (cm)
  CP32-0540	5	180	120	40	CP32-1214	12	450	250	140
  CP32-0560	5	200	140	60	CP32-1216	12	500	260	160
  CP32-0660	6	240	150	65	CP32-2408	24	160	190	80
  CP32-0670	6	250	160	70	CP32-2410	24	180	220	100
  CP32-0770	7	280	180	75	CP32-2414	24	230	250	140
  CP32-0780	7	300	195	80	CP32-2416	24	250	260	160
  CP32-0910	9	350	220	100	CP32-2418	24	270	270	180
  CP32-0912	9	370	250	120	CP32-2420	24	300	300	200

• Note :

• l Maximum temperature: 60°C (140F); 100°C (180F) needs to be customized

• l Power cord: customized

• l More parameters can be customized according to customer requirements;

• l Built-in water shortage and power failure function according to customer requirements

• l There are many appearances, customers should pay attention to selection
