DC high pressure water pump

category:CP37A
hit count:
Release date:2020/11/16
Online Inquiry

Detailed introduction

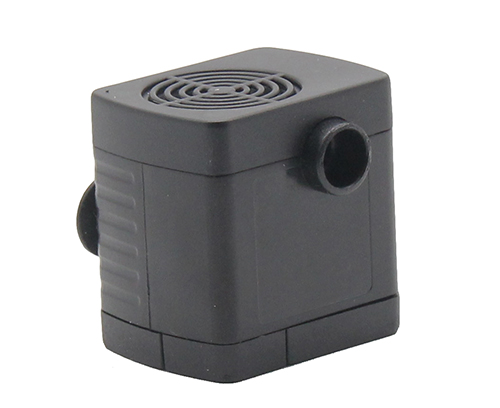

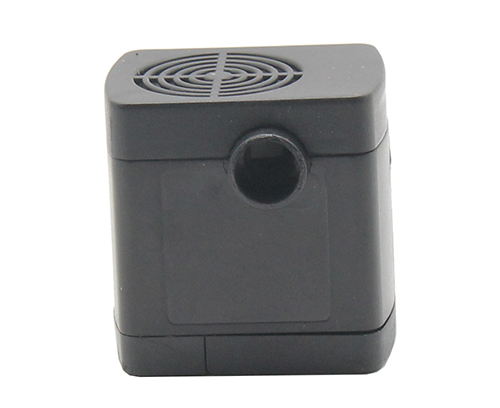

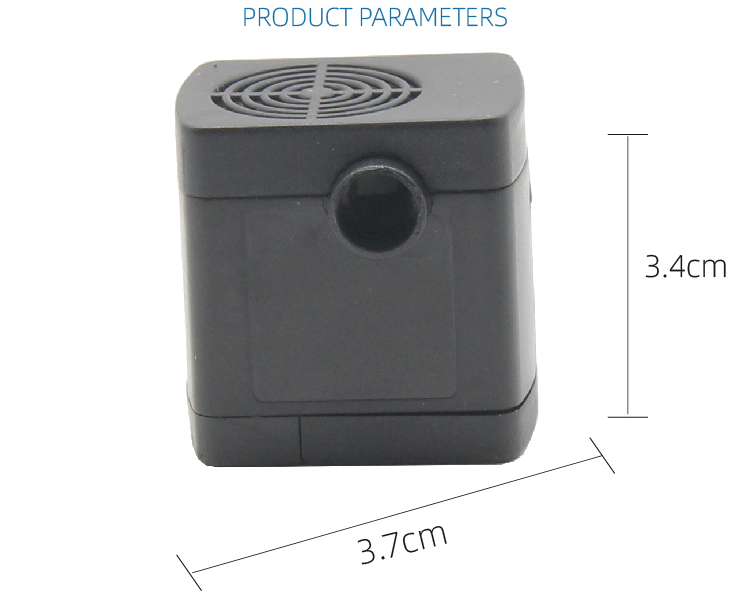

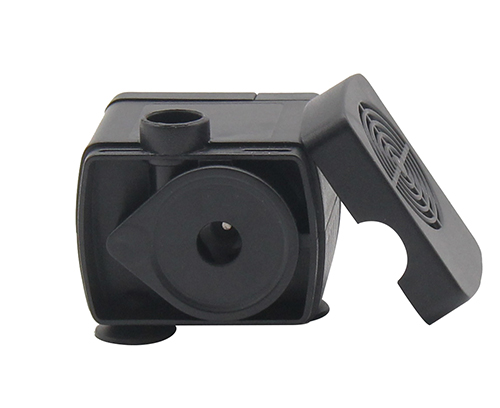

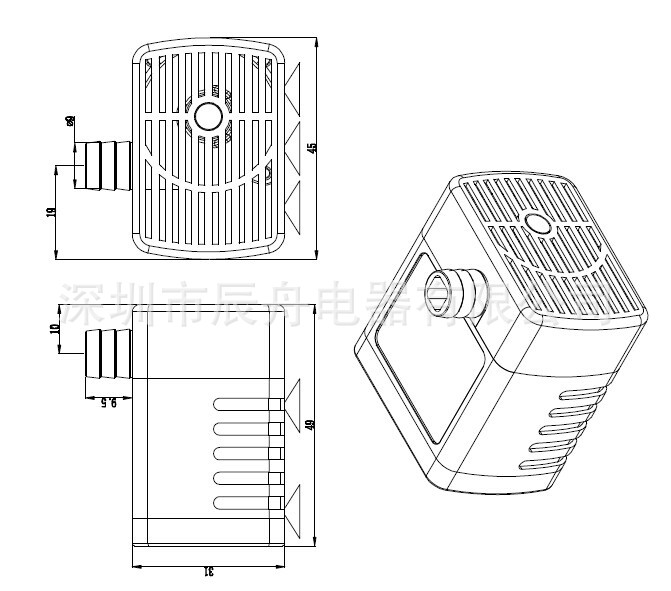

Brushless DC Water Pump CP37A Series

● 6V～24V DC

● Ultra-quiet design

● Long life, theoretical life>15000 hours

● Permanent magnet rotor and stainless steel shaft

● Maintenance-free

● Diving and non-diving design

● Low power consumption

● Maximum lift 2.7M

● Maximum flow 310L/H;

● Weight: 100g

application

● Solar fountain ;

● USB fountain

● Cooling fan, mattress

● Water cycle

● Water dispenser

Parameter
Model	V (V)	I (MAX) (mA)	Q (MAX) (L/H)	H (MAX) (cm)	Model	V (V)	I (MAX) (MA)	Q (MAX) (L/H)	H (MAX) (cm)
CP36-0660	6	115	130	60	CP36-2408	twenty four	70	150	80
CP36-0770	7	130	140	70	CP36-2410	twenty four	80	165	100
CP36-0910	9	155	170	100	CP36-2415	twenty four	135	200	150
CP36-1215	12	190	200	150	CP36-2420	twenty four	200	240	200
CP36-1218	12	240	220	180	CP36-2424	twenty four	290	280	240
CP36-1222	12	300	240	220	CP36-2427	twenty four	340	310	270
note: l Maximum temperature: 60°C (140F); 100°C (180F) needs to be customized l Power cord: customized l More parameters can be customized according to customer requirements; l Built-in water shortage and power failure function according to customer requirements l There are many appearances, customers should pay attention to selection

The headquarters of Shenzhen Chenzhou Electric Co., Ltd. is located near Nantouguan, Shenzhen. It has a motor production base of 5,000 square meters in Guilin, Guangxi, and an electrical production base of 4,500 square meters in Longgang District, Shenzhen. The company uses strong electronic technology in Shenzhen. Relying on the industry, taking advantage of the easy communication between neighboring Hong Kong and Macau and foreign businessmen, mainly engaged in brushless motors and household appliances Solar water pump ,Development, production and sales of high-tech products such as micro high-pressure water pumps and brushless DC water pumps.

After several years of development, a group of technical elites in the industry have gathered to develop a series of electrical and electronic products with high technical content and market development prospects. Such as industrial permanent magnet brushless motors and control systems; solar DC brushless water pumps ; high-speed brushless motors and control systems for aircraft models; dual-frequency ultrasonic toothbrushes; ultrasonic household products; special micro-series water pumps. Interested parties are welcome to call!
